motoscope pro
- Part: MG1005101
BigTwin from 2011 and Sportster from 2014
Learn More$649.00 - Part: MG1005102Digital dashbaord, 734 LEDs - governed by a 16-bit RISC processor Learn More$529.00
- Part: MG1005031Digital dashbaord, 734 LEDs - governed by a 16-bit RISC processor Learn More$475.00
- Part: MG1005090Air Temperature sensor for motoscope pro Learn More$49.00
- Part: MG1005030Digital dashbaord, 734 LEDs - governed by a 16-bit RISC processor Learn More$427.00
- Part: MG9003050Black, M12 momentary push button with bracket Learn More$48.00
- Part: MG9003044Black, M12 momentary push button Learn More$21.00
- Part: MG9003045Stainless, M12 momentary push button Learn More$21.00
- Part: MG1005041Motoscope Pro additional functions adapter Learn More$99.00
- Part: MG1005040Motoscope Pro additional functions adapter Learn More$77.00
- Part: MG1003115
Harley-Davidson J1850 Signal Converter, XL with MOLEX connector
Learn More$227.00 - Part: MG1003114
Harley-Davidson J1850 Signal Converter, XL with DEUTSCH connector
Learn More$227.00 - Part: MG1003113
Harley-Davidson J1850 TwinCam Signal Converter
Learn More$227.00 - Part: MG1005032Black, Aluminum bracket for motoscope pro R9T Learn More$59.00
- Part: MG1005060Black, Aluminum bracket for motoscope pro Learn More$46.00
- Part: MG9001020Oil Pressure Sensor, M10 x 1 Learn More$79.00
- Part: MG9000001High tension ignition signal pickup Learn More$68.00
- Part: MG9001005Temperature Sensor, M18 x 1,5 Learn More$69.00
- Part: MG9001007Temperature Sensor, M12 x 1.5 Learn More$59.00
- Part: MG9001002Temperature Sensor, M10 x 1 Learn More$49.00
- Part: MG9007032M5 Dry Reed speedometer sensor Learn More$41.00
- Part: MG9007033
Speedo Sensor BMW Gearbox for older Boxer models.
Learn More$64.00 - Part: MG9007035M6 magnetic bolt for speedometer sensor Learn More$29.00
Details

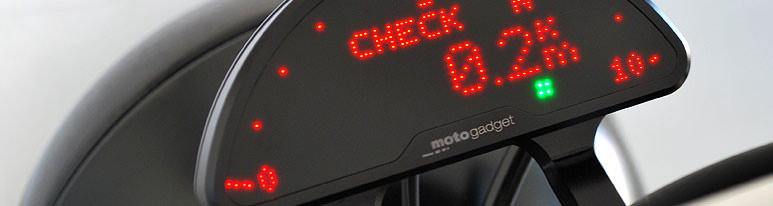

The motoscope pro is the most recent generation of motogadget's digital dashboard series.
Cutting edge technology enables us to create ultra-slim casing designs. 734 LEDs - governed by a 16-bit RISC processor - create an almost rimless, self-illuminating display matrix. It provides optimal readability even under conditions of direct sunlight. Automatic brightness control is a matter of course.
The rev-counter is displayed fully scalable via the analogue LED band with drag indicator function. Main and secondary display are user configurable. Another display section shows the gear currently engaged.
Four indicator lights are pre-installed and can be used for far more input signals via the Breakout Boxes. The motoscope pro is equipped with a fully-fledged CAN-bus interface and thus ready for many of tomorrow's developments like for example the plug 'n ride Breakout-Box Triumph (please see tab 'Triumph' above).
The dashboard communicates over a proprietary digital one-wire bus (m-Bus) with additional Breakout Boxes to easily expand the application spectrum. This makes the dashboard highly versatile and makes application to a wide range of vehicles and tasks possible.
The billet aluminium casing is cnc-machined and is easily mounted by two backside threaded holes. The instrument is equipped with an ABE and does not have to be registered.
Parts delivered:
motoscope pro with ca. 55 cm connector cable, speedometer sensor M5 x 0,5 fine-pitch thread (stainless steel, IP67) with ca. 150 cm connector cable, 2 magnets, 9-pin connector kit, in-line fuse, 2 stainless steel screws, detailed installation and operating instructions.
