- Fitting - F1: You have not set this item
- Fitting - F2: You have not set this item
- Fitting - F3: You have not set this item
- Length A: You have not set this item
- Length B: You have not set this item
- Length C: You have not set this item
Fitting F1, choose from banjo fittings or compression fittings accordingly
-
Junction, 10mm / 3/8"
3-way T Fitting with mounting hole, ID 6.2mm
Available in aluminum.
Learn More -
-
Fixed internal thread 3/8"-24UNF
Straight, cone 90 degrees convex, 3mm circlip groove
X = 9.6mm, D = 15.8mm, wrench size = 17mm
Available in aluminum
Learn More -
Swivel internal thread 3/8"-24UNF
Straight, cone 90 degrees concave/convex
X = 8.5mm, D = 13.5mm, wrench size = 14mm
Available in aluminum
Learn More -
Swivel internal thread 3/8"-24UNF
Straight, cone 90 degrees convex
X = 8mm, D = 13.5mm, wrench size = 14mm
Available in aluminum
Learn More -

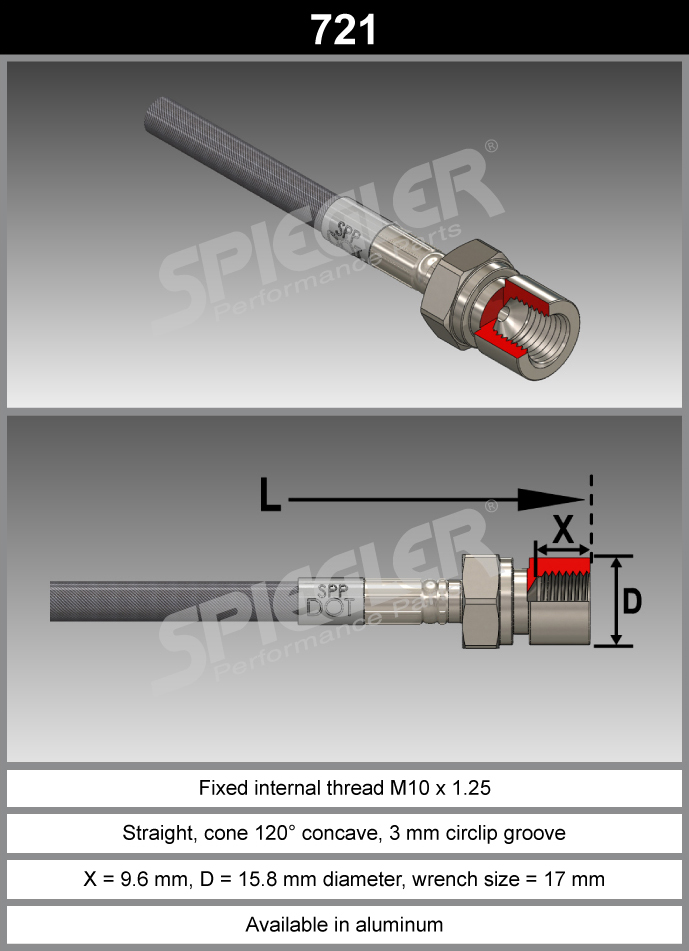

Fixed internal thread M10 x 1.25
Straight, cone 120 degrees concave, 3mm circlip groove
X = 9.6mm, D = 15.8mm, wrench size = 17mm
Available in aluminum.
Learn More -

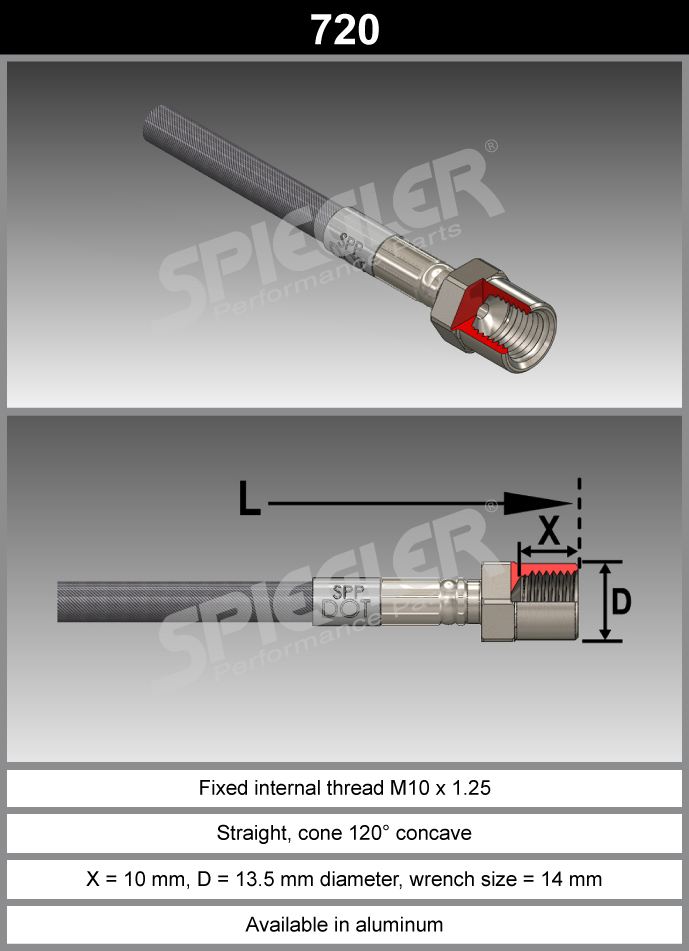

Fixed internal thread M10 x 1.25
Straight, cone 120 degrees concave
X = 10mm, D = 13.5mm, wrench size = 14mm
Available in aluminum.
Learn More -

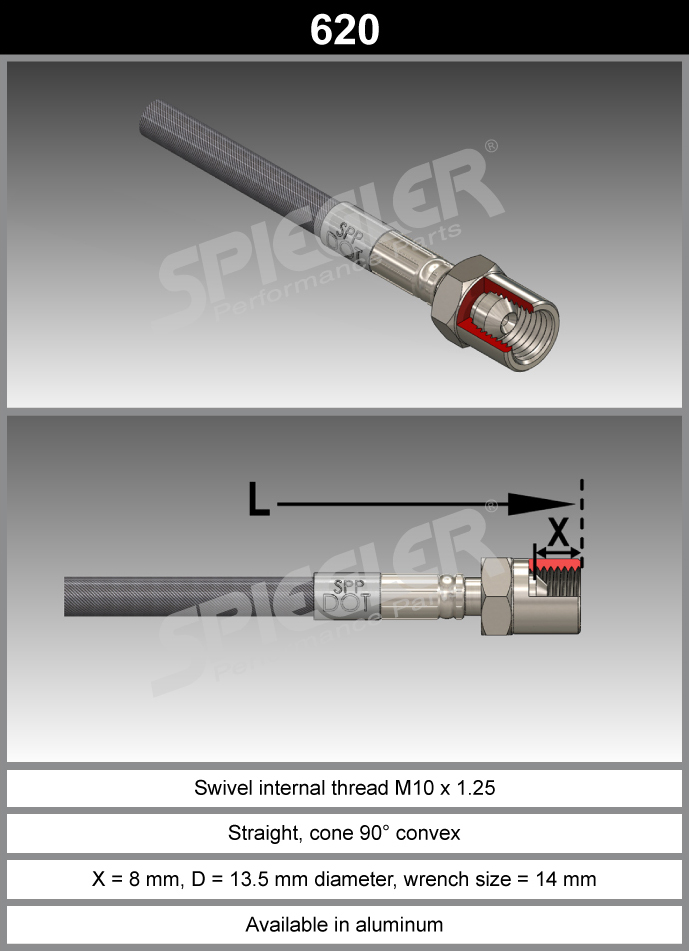

Swivel internal thread M10 x 1.25
Straight, cone 90 degrees convex
X = 8mm, D = 13.5mm, wrench size = 14mm
Available in aluminum.
Learn More -

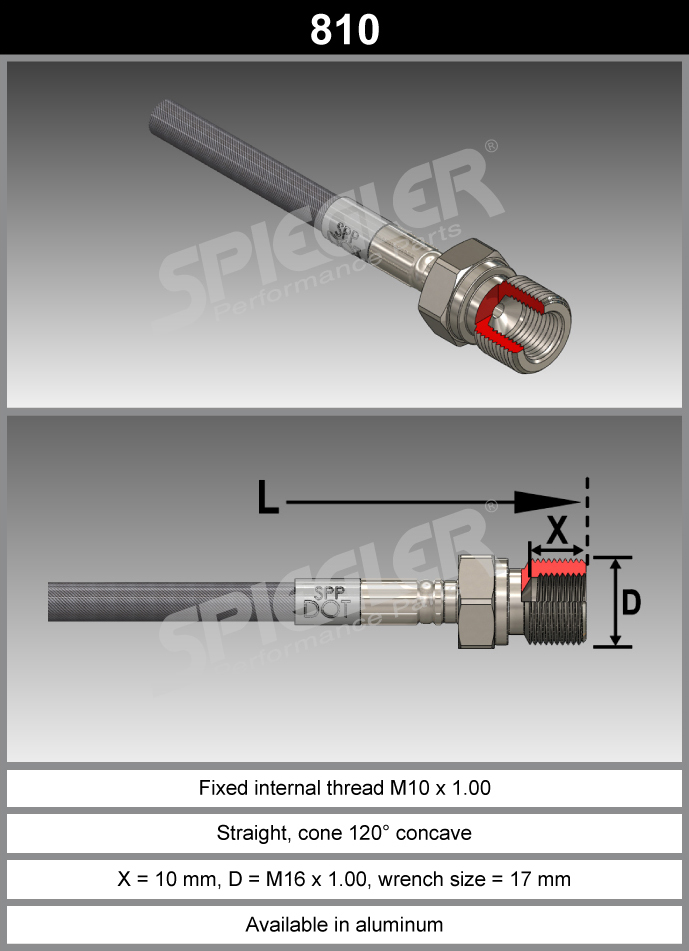

Fixed internal thread M10 x 1.00
Straight, cone 120 degrees concave
X = 10mm, D = M16 x 1.00, wrench size = 17mm
Available in aluminum.
Learn More -
Fixed internal thread M10 x 1.00
Straight, cone 120 degrees concave, 3mm circlip groove
X = 9.6mm, D = 15.8mm diameter, wrench size = 17mm
Available in aluminum.
Learn More -

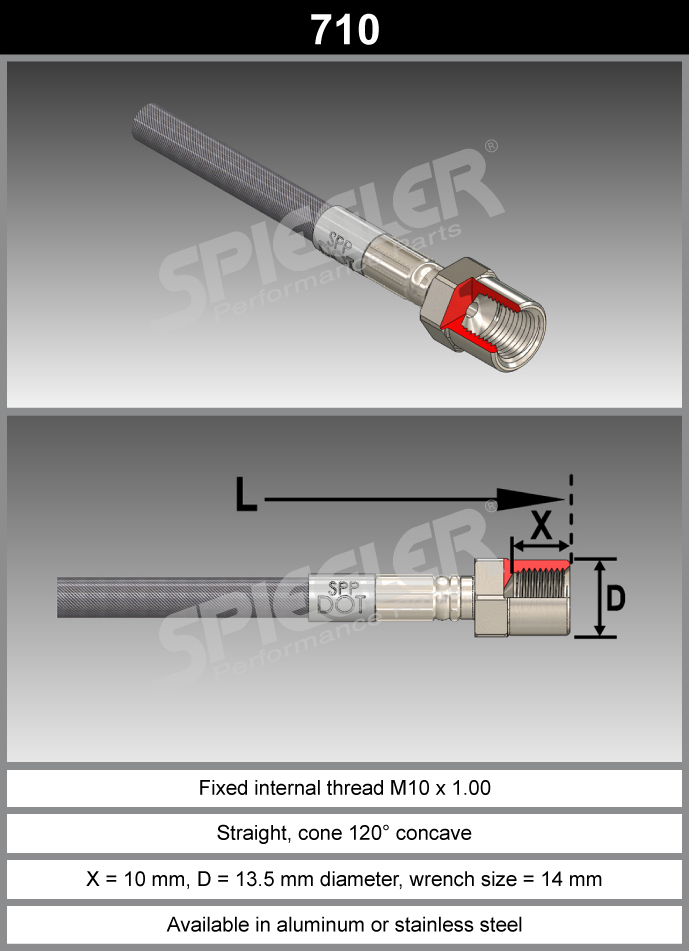

Fixed internal thread M10 x 1.00
Straight, cone 120 degrees concave
X = 10mm, D = 13.5mm diameter, wrench size = 14mm
Available in aluminum stainless steel.
Learn More -

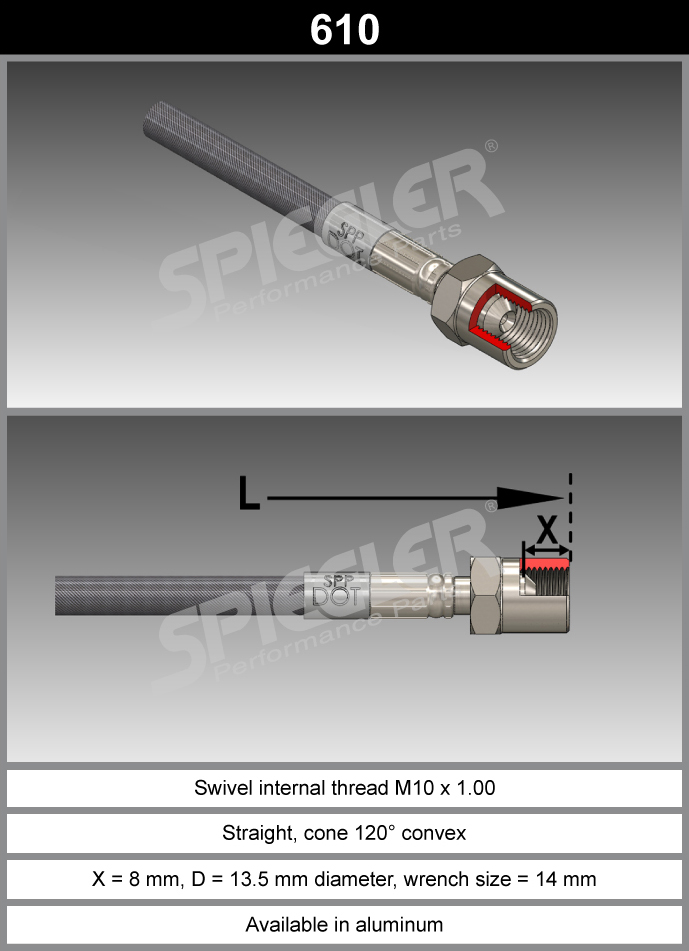

Swivel internal thread M10 x 1.00
Straight, cone 120 degrees convex
X = 8mm, D = 13.5mm diameter, wrench size = 14mm
Available in aluminum.
Learn More -

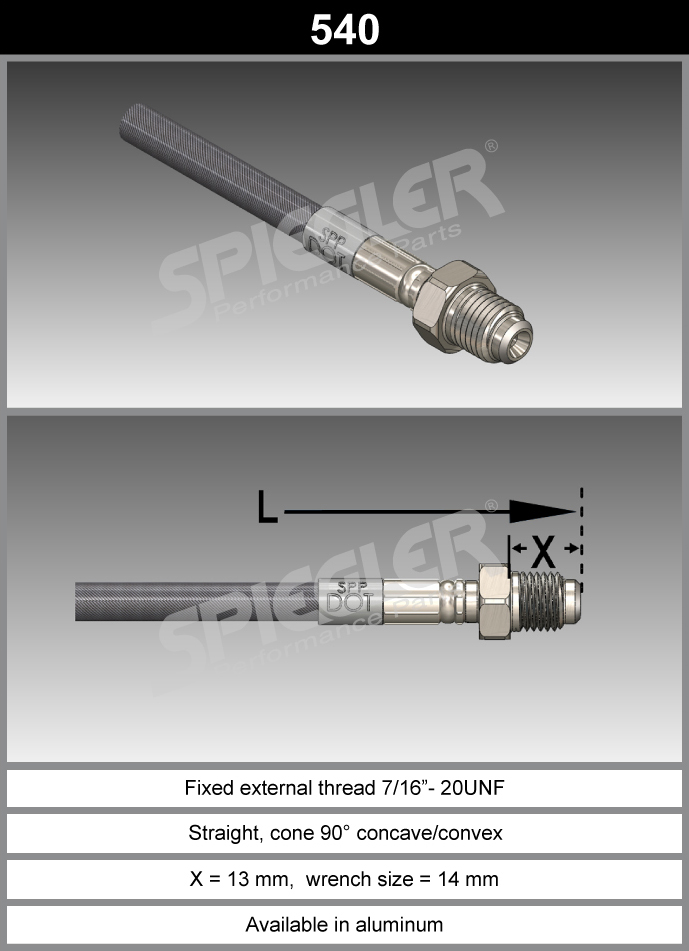

Fixed external thread 7/16"-20UNF
Straight, Cone 90 Degrees Concave/Convex
X = 13mm, wrench size = 14mm
Available in aluminum.
Learn More -

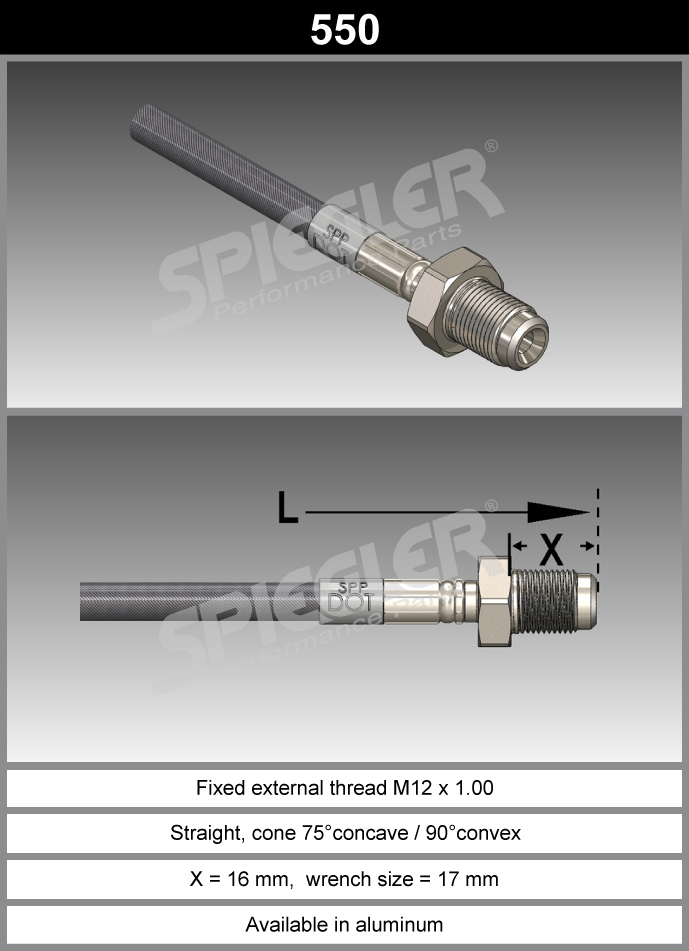

Fixed external thread M12x1.00
Straight, cone 75 Degrees Concave / 90 Degrees Convex
X = 16mm, wrench size = 17mm
Available in aluminum.
Learn More -

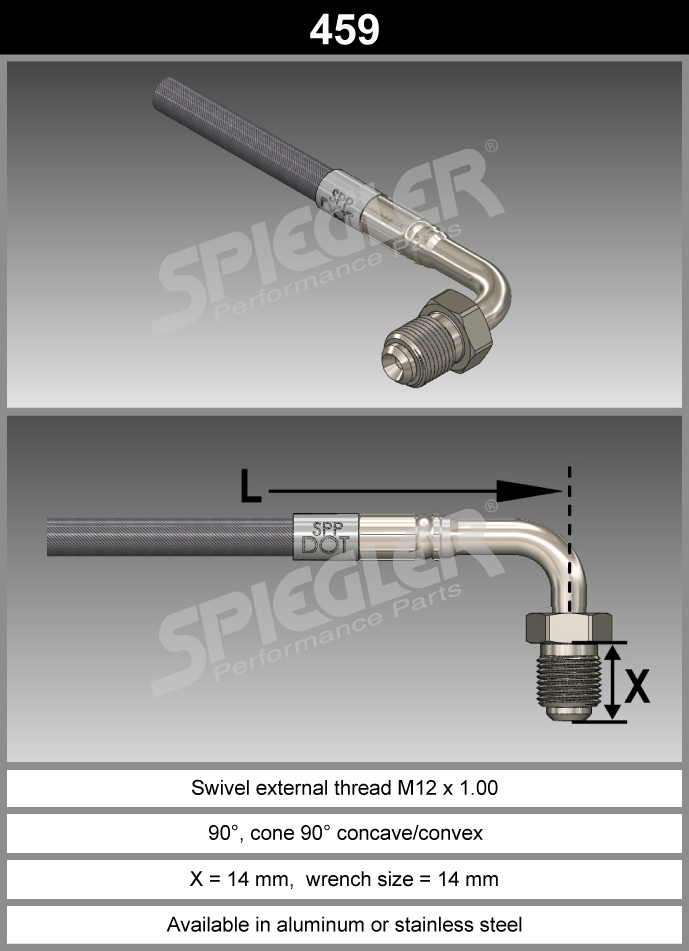

Swivel external thread M12x1.00
90 Degrees, cone 90 Degrees Concave/Convex
X = 14mm, wrench size = 14mm
Available in aluminum or stainless steel.
Learn More -
Fixed external thread 3/8"-24UNF
Straight, Cone 90 Degrees Concave/Convex
X = 9.6mm, wrench size = 14mm
Available in aluminum.
Learn More -
Fixed external thread 3/8"-24UNF
Straight, Cone 90 Degrees Concave/Convex
X = 12.3mm, wrench size = 14mm
Available in stainless steel and aluminum.
Learn More -

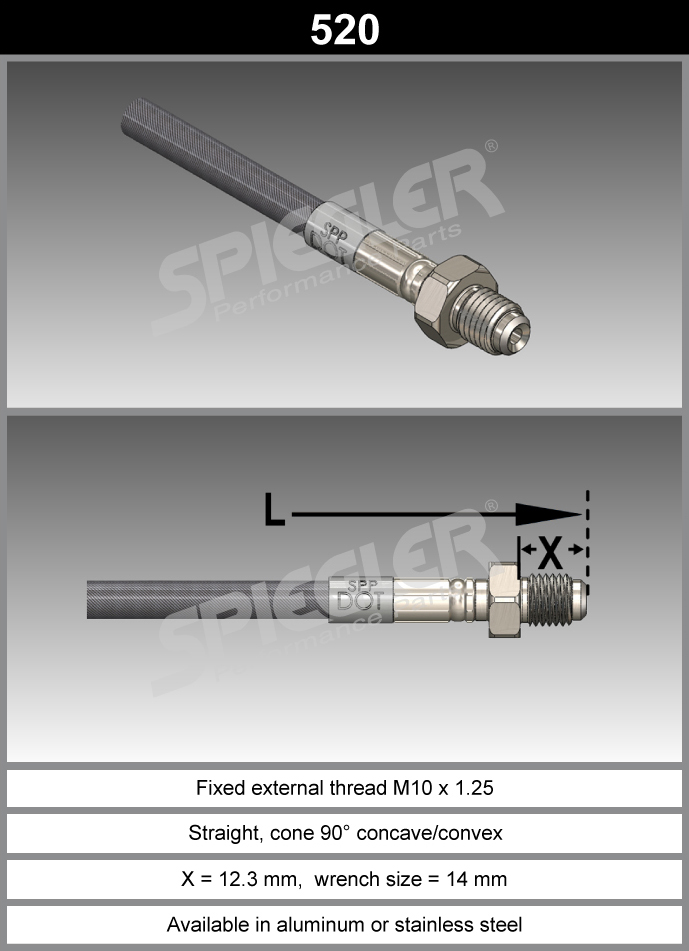

Fixed external thread M10 x1.25
Straight, Cone 90 Degrees Concave/Convex
X = 12.3mm, wrench size = 14mm
Available in aluminum or stainless steel.
Learn More -
Fixed external thread M10 x1.00
Straight, Cone 90 Degree concave/convex
X = 15mm, wrench size = 14mm
Available in aluminum.
Learn More -
Fixed external thread M10 x1.00
Straight, Cone 90 Degree concave
X = 10mm, wrench size = 14mm
Available in aluminum.
Learn More -

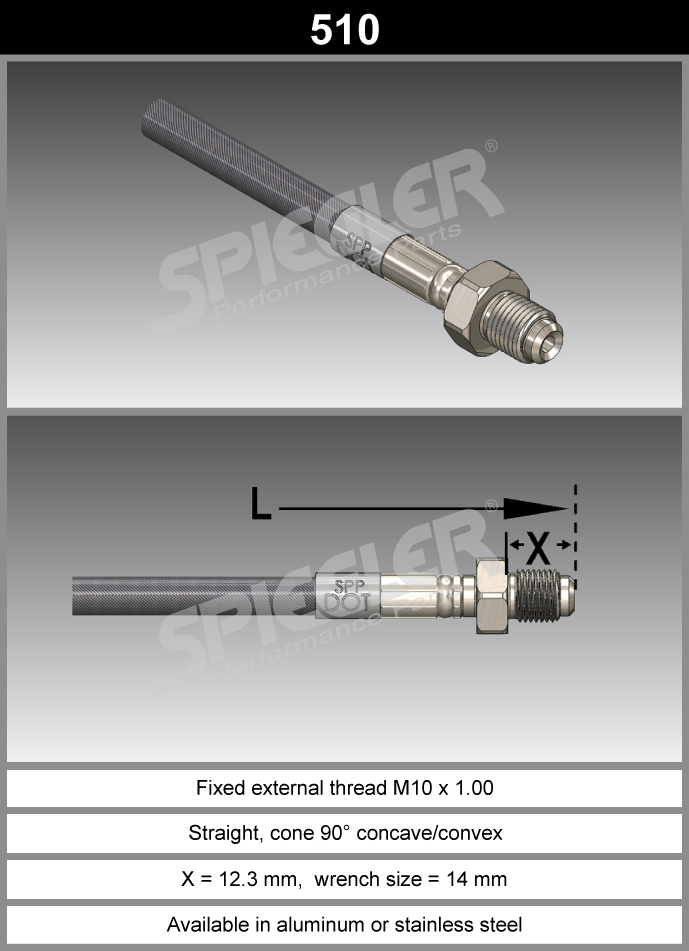

Fixed external thread M10 x1.00
Straight, Cone 90 Degree concave/convex
X = 12.3mm, wrench size = 14mm
Available in aluminum or stainless steel.
Learn More -
-
-
Choose your fitting types for the Spiegler Type 950/951 brake line. This brake line configuration is mostly chosen for front brake lines, automotive applications, side cars and trikes. You can choose between aluminum and stainless steel fittings. Please be aware that the stainless steel fittings are not available in colors. Add several lines to your quotation request. Our brake line diameter comes very close (slightly smaller) to the standard AN3 line diameter. All brake line components are either made in Europe or the US. You can depend on the finest materials. We are not using any carbon steel components; it is either stainless steel or anodized aluminum. The manifold type 951 gives you the option, utilizing a 6mm bolt, to mount it to a bracket or similar.
Grommets and Tab Locator:
X = 16 mm
D = 15 mm
X = 13.5 mm
D = 11.9 mm
(used in 20-00085-SS tab locator)
X = 22 mm
D = 17.8 mm
X = 14 mm
D = 12 mm
X = 41 mm
Y = 20 mm
Z = 21 mm
8 mm bolt hole
tab locator includes rubber grommet
