- Fitting - F1: You have not set this item
- Fitting - F2: You have not set this item
- Length A: You have not set this item
- Distance U: You have not set this item
- Distance L1: You have not set this item
Fitting F1, choose from banjo fittings or compression fittings accordingly
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

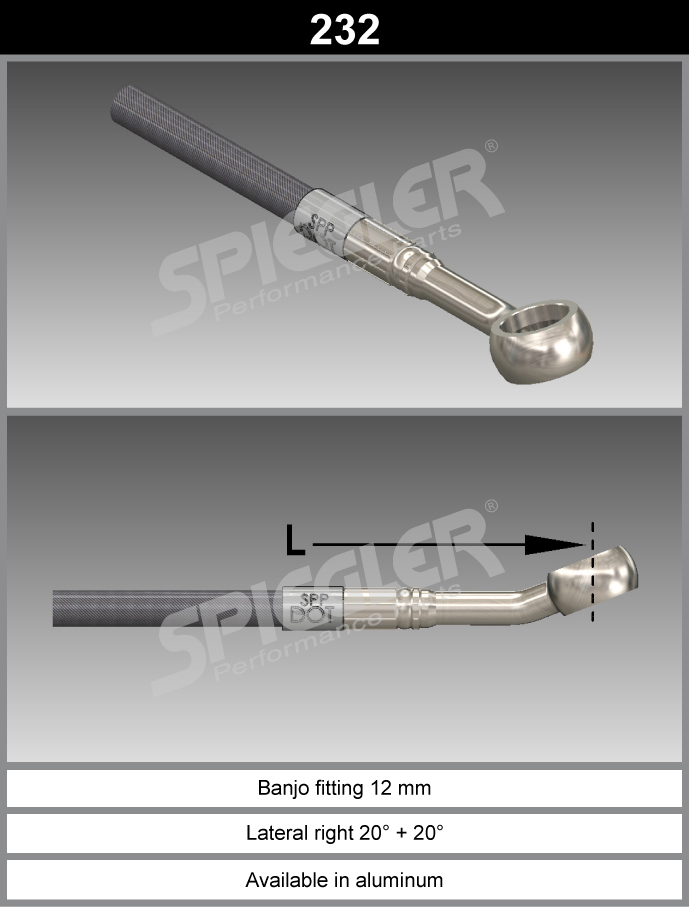

Banjo Fitting 12mm Lateral Right 20 Degrees + 20 Degrees
Available in aluminum and stainless steel.
Learn More -

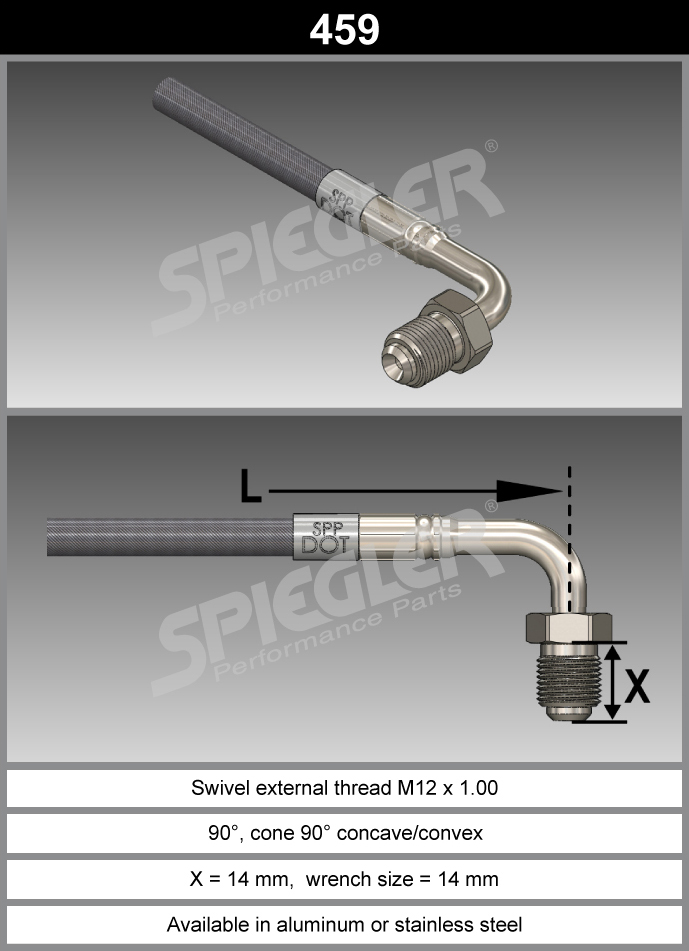

Swivel external thread M12x1.00
90 Degrees, cone 90 Degrees Concave/Convex
X = 14mm, wrench size = 14mm
Available in aluminum or stainless steel.
Learn More -

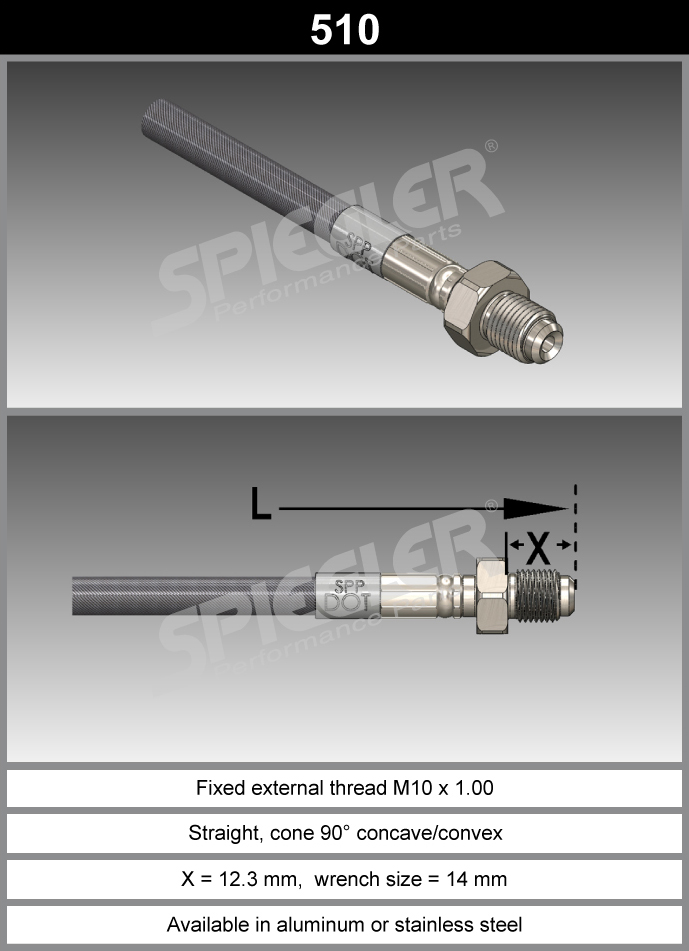

Fixed external thread M10 x1.00
Straight, Cone 90 Degree concave/convex
X = 12.3mm, wrench size = 14mm
Available in aluminum or stainless steel.
Learn More -

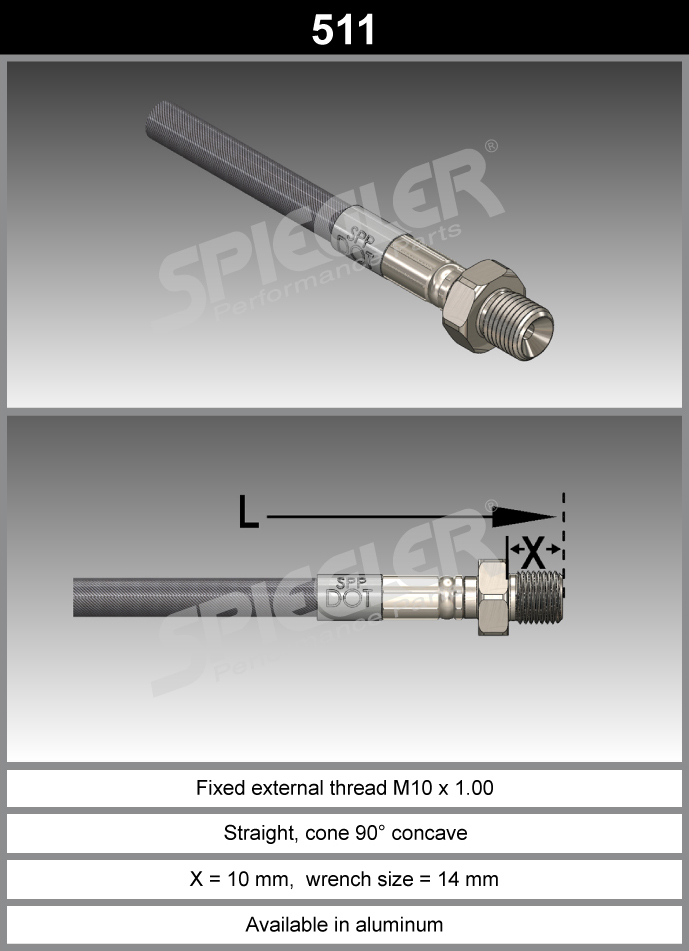

Fixed external thread M10 x1.00
Straight, Cone 90 Degree concave
X = 10mm, wrench size = 14mm
Available in aluminum.
Learn More
Choose your fitting types for the Spiegler Motocross brake line. You can choose between aluminum and stainless steel fittings. Please be aware that the stainless steel fittings are not available in colors. Add several lines to your quotation request. Our brake line diameter comes very close (slightly smaller) to the standard AN3 line diameter. All brake line components are either made in Europe or the US. You can depend on the finest materials. We are not using any carbon steel components; it is either stainless steel or anodized aluminum. The black hard plastic line, eliminates any chance of the line becoming kinked or caught e.g. by the wheel, is sealed up at the ends with a marine grade self-adhesive heat shrink.
Grommets and Tab Locator:
X = 16 mm
D = 15 mm
X = 13.5 mm
D = 11.9 mm
(used in 20-00085-SS tab locator)
X = 22 mm
D = 17.8 mm
X = 14 mm
D = 12 mm
X = 41 mm
Y = 20 mm
Z = 21 mm
8 mm bolt hole
tab locator includes rubber grommet
Help us set up your quote.
