- Fitting - F1: You have not set this item
- Fitting - F2: You have not set this item
- Length A: You have not set this item
- Distance U: You have not set this item
- Distance L1: You have not set this item

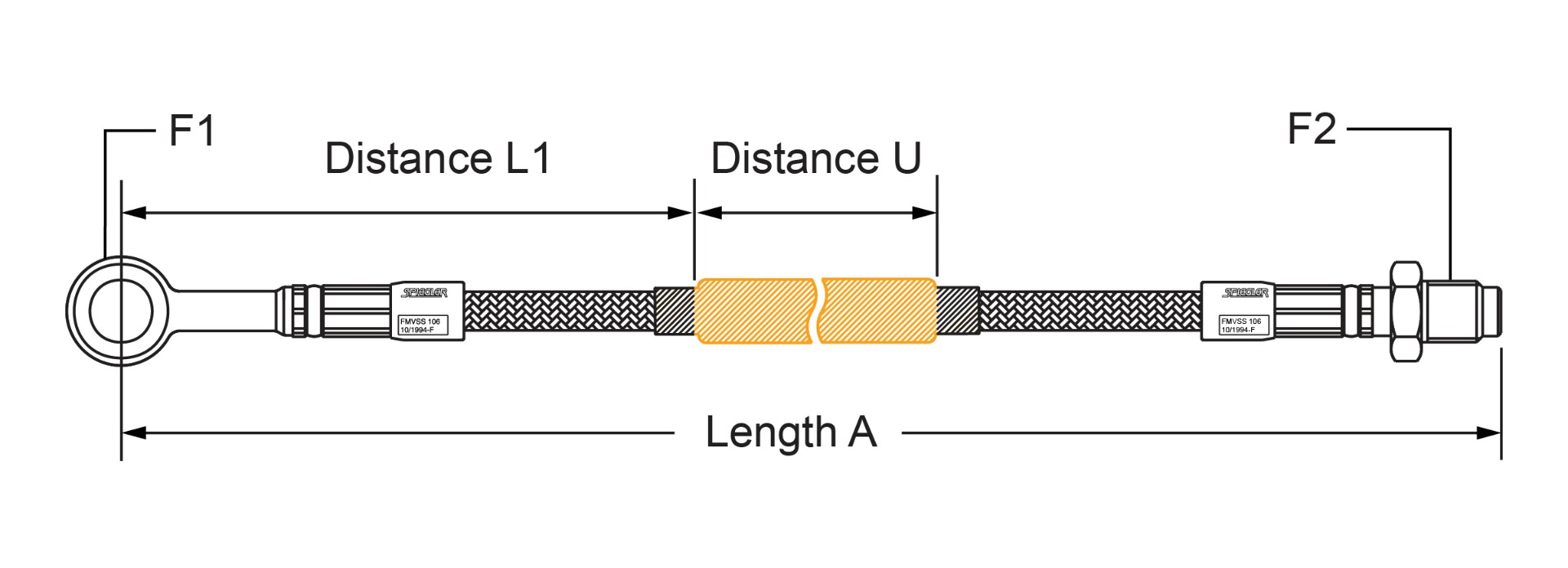

Measure Length U for the hard plastic line which goes over the Spiegler brake line
Choose your fitting types for the Spiegler Motocross brake line. You can choose between aluminum and stainless steel fittings. Please be aware that the stainless steel fittings are not available in colors. Add several lines to your quotation request. Our brake line diameter comes very close (slightly smaller) to the standard AN3 line diameter. All brake line components are either made in Europe or the US. You can depend on the finest materials. We are not using any carbon steel components; it is either stainless steel or anodized aluminum. The black hard plastic line, eliminates any chance of the line becoming kinked or caught e.g. by the wheel, is sealed up at the ends with a marine grade self-adhesive heat shrink.
Grommets and Tab Locator:

X = 16 mm
D = 15 mm

X = 13.5 mm
D = 11.9 mm
(used in 20-00085-SS tab locator)

X = 22 mm
D = 17.8 mm

X = 14 mm
D = 12 mm

X = 41 mm
Y = 20 mm
Z = 21 mm
8 mm bolt hole
tab locator includes rubber grommet
